When it comes to process control, small details can have a massive impact. One of the most overlooked—but critical—components in a control valve system is the positioner. Whether you're working with analog or digital systems, calibrating your positioners is essential to ensure your valves respond precisely to control signals. Without proper calibration, you're not just risking minor inefficiencies—you're potentially inviting product waste, equipment wear, and unexpected downtime.
What is Positioner Calibration?
Positioner calibration ensures that a valve’s position accurately reflects the input control signal it receives. This process fine-tunes the responsiveness and accuracy of the valve, making sure the system performs exactly as intended. Calibration varies slightly depending on whether the positioner is analog or digital, but both require attention to detail and a solid understanding of the system.
Analog Positioner Calibration
For analog positioners, calibration includes both electrical and mechanical adjustments:
Zero Adjustment:This sets the positioner’s output to zero when the input signal is at its minimum range (e.g., 4mA). It’s the foundation of accurate valve movement.
Span Adjustment:This calibrates the output so that when the signal is at its maximum (e.g., 20mA), the valve completes its full travel range.
Mechanical Adjustments:These may include modifying cams or linkages to align the positioner’s response with the valve’s mechanical behavior.
These steps help align the analog signal range with the physical movement of the valve, ensuring smooth and precise actuation.
Digital Positioner Calibration
Digital positioners bring automation and advanced diagnostics into the picture. Calibration can be even more precise and user-friendly with tools like:
Auto-Tune / Self-Calibration:Many digital positioners can automatically calibrate themselves by learning the characteristics of the valve and actuator.
Software or HART Communication:Technicians can calibrate digital positioners remotely using software interfaces or handheld HART communicators, simplifying the process and reducing human error.
Digital I/O Signals:These provide clean, precise control signals and feedback, minimizing variability caused by analog signal drift.
Why Calibration Matters
So why go through the effort of calibrating your positioners regularly? Here are some of the major benefits:
✅ Precise Process Control
A properly calibrated valve responds exactly to input signals, helping you maintain tight control over pressure, flow, or temperature.
✅ Reduced Process Variability
Accurate valve movement leads to stable processes, which improves product quality and reduces material waste.
✅ Improved Operational Efficiency
With valves working at their best, systems run more smoothly, consuming less energy and requiring fewer corrections or interventions.
✅ Predictive Maintenance
Digital positioners often include built-in diagnostics that monitor valve performance over time. This data can help predict failures before they happen, reducing unplanned downtime and costly repairs.
Make Calibration Part of Your Maintenance Routine
Calibration isn't a one-and-done task. Like any precision instrument, positioners can drift or degrade over time, especially in demanding industrial environments. Incorporating calibration into your regular maintenance schedule will protect your equipment and ensure optimal system performance.

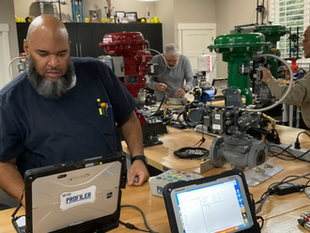

If you’re unsure whether your valve systems are calibrated correctly, or you’re ready to upgrade from analog to digital positioners, SofTek Engineering can help. Our Profiler diagnostic systems and hands-on training courses give you the tools and knowledge to get the most out of your valves—every time.
